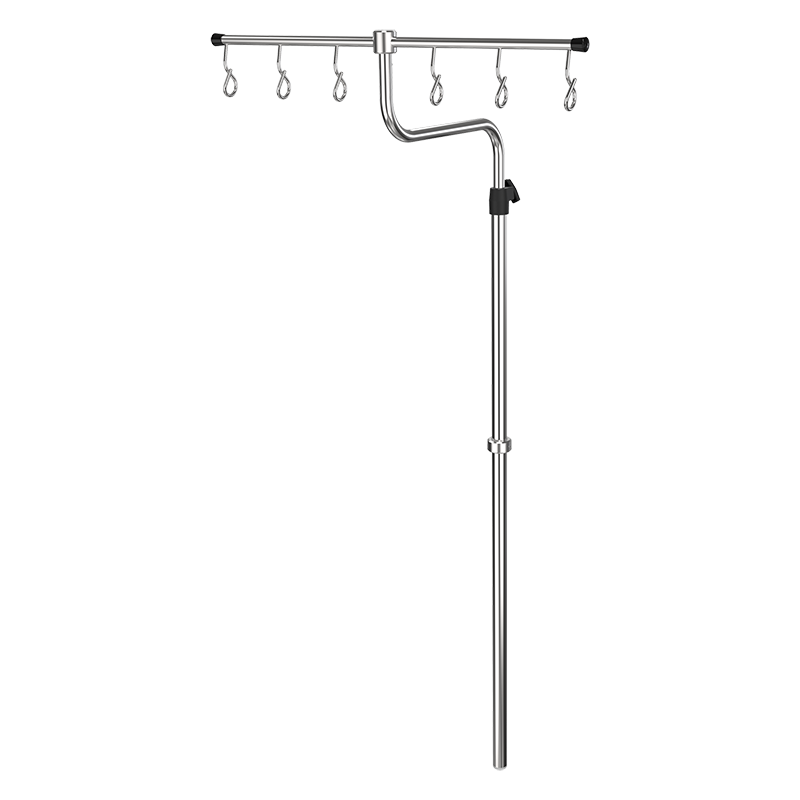

IV-POLE, 90° ANGLED (I2000552 & I2000562)
IV-POLE, 90° ANGLED with maximum height of 2,115 mm (6.93897′) (I2000552)
IV-POLE, 90° ANGLED with maximum height of 2,400 mm (7.87401′) (I2000562)
- With screw height adjustment
- Effective infusion care by securely hanging infusion bottles and bags
- Space-saving infusion care
- All plastic parts are lightfast (resistant to lighting and sunlight)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
Additional Information
| Material: | Stainless steel |
| Bottle Holder: | Stainless steel, for screw-in |
| Number of hooks: | 6 |
| Arrangement of the hooks: | In line with each other |
| Bottle holder: | stainless steel, safety bottle hooks |
| Load capacity (kg): | 2 per hook |
| Type of height adjustment: | Screw height adjustment |
| Maximum length/height: | 2,115 mm (6.93897′) (I2000552) 2,400 mm (7.87401′) (I2000562) |
| Minimum length/height: | 1,270 mm (4.16666′) (I2000552) 1,780 mm (5.83989′) (I2000562) |
| Angled: | 2 x 90° |
| Parallel shift: | 300 mm (11.81102″) |
| Inner tube diameter: | Ø 18 mm (0.70866″) |
| Outer tube diameter: | Ø 25 mm (0.98425″) |
| Length of outer tube: | 1,000 mm (3.28083′) (I2000552) 1,500 mm (4.92125′) (I2000562) |
| Total load capacity (kg): | 12 kg (26.45549 lbs) (I2000552) 8 kg (17.63699 lbs) (I2000562) |
| Load capacity per system (kg): | 6 kg (13.22774 lbs) |
| Load capacity per hook (kg): | 2 kg (4.41 lbs) |
