| Material: |
Stainless steel/Aluminum |
| Bottle Holder: |
Stainless steel, for screw-in |

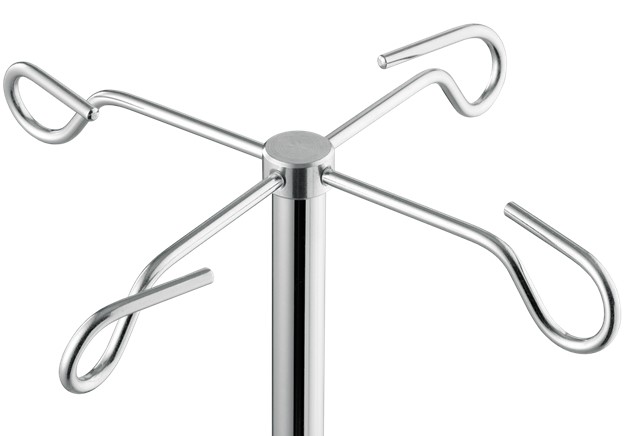

| Number of hooks: |
4 |
| Arrangement of the hooks: |
90° to each other |
| Type of height adjustment: |
Single handed safety height adjustment and additional screw height adjustment for anti-twist protection |
| Maximum length/height: |
1,510 mm (4.95406′) |
| Minimum length/height: |
1,180 mm (3.87139′) |
| Parallel shift: |
Approximately 350 |
| Inner tube diameter: |
Ø 18 mm (0.70866″) |
| Outer tube diameter: |
Ø 25 mm (0.98425″) |
| Length of outer tube: |
600 mm (1.96850′) |
| Equipment: |
2 x 45 ° angled, with medical rail clamp and wall support, for assembling onto medical rails 25 mm (0.98425″) x 10 mm (0.39370) |
| Total load capacity: |
8 kg (17.64 lbs) |
| Load capacity per system: |
8 kg (17.64 lbs) |
| Load capacity per hook: |
2 kg (4.41 lbs) |
