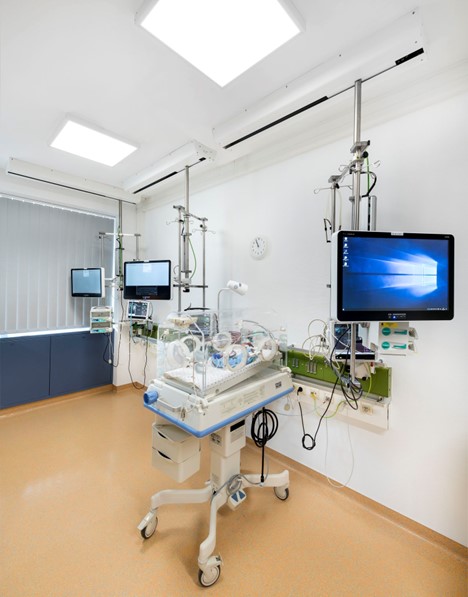

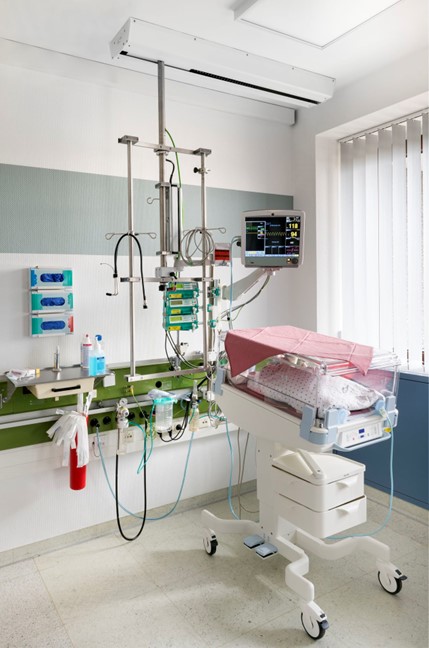

ICS 4 SYSTEM

Provides unhindered access to the patient thanks to a multifunctional room use
Adequate interior design thanks to individual configurability
Maximum flexibility within the intended work field enables an effective work flow
System permits a flexible management of infusion pumps and devices with a maximum floor freedom
Integrated power and network supply
High-quality guiding profile with abrasion-resistant surface and extremely smooth running support rollers

Additional Information

Material:	Stainless steel
Material support roller:	PU
Profile material:	Aluminum / sheet steel coated
Color:	White
Room height:	2,500 (8.20209′)
Total load capacity of the carrier unit:	80 kg (176 lbS 5.917184 oz)
Profile size:	300 mm (11.8110″) x 120 mm (4.72440″)
Profile length:	(8.20209′)
Total load capacity of the rail:	100 kg (220 lbS 7.396480 oz)
Weight of rail:	Approximately 30 kg (66.14 lbs)
Number of support tubes:	2
Dimensions of supporting tube:	25 mm (0.98425″) x 800 mm (31.49606″)
Power feed:	Integrated into the profile
Manageable cables:	Power and network supply
Rotation angle of carrier unit:	Approximately 340°
Diameter support rollers:	60 (1.18110″)
Number of support rollers:	4
Brake system:	Integrated into the carrier unit
Position of the brake lever:	Underneath multi-equipment carrier
Total load capacity:	100 kg (220 lbs 7.396480 oz)
