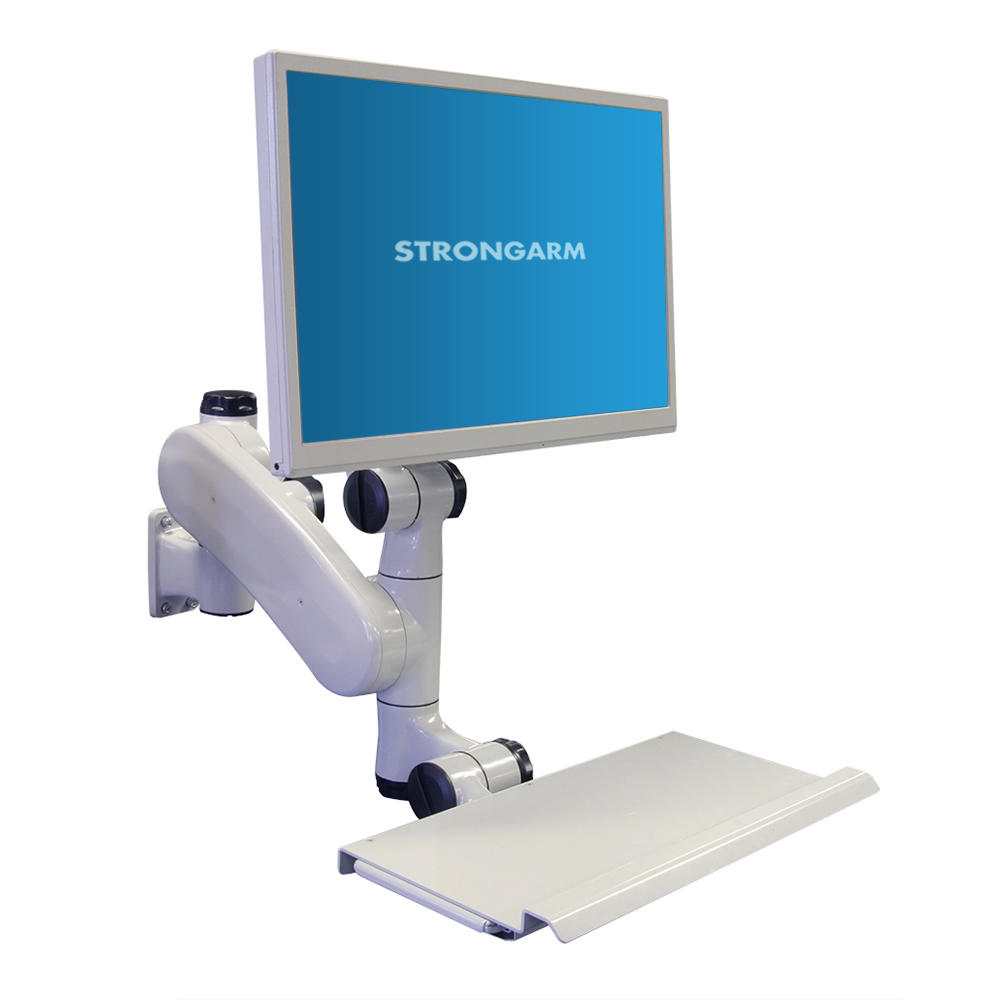

CLEANMOUNT

Strongarm’s CleanMount keyboard and display arm feature a fully enclosed cable passageway eliminating all external cable clutter and its smooth, non-porous surfaces are ultra-cleanable. CleanMount’s multiple pivot points and vertical articulation allow the monitor and keyboard to be quickly repositioned to achieve optimal ergonomics for each operator. Cast aluminum machine grade construction makes the CleanMount exceptionally suitable for cleanroom, healthcare, or industrial environments.

At Strongarm Designs, our focus is the quality and design of all our operator interface systems and mountings. With its robust aluminum construction, the extremely durable CleanMount arm is an excellent choice for use in locations where infection control is vital

Get A Quote

Additional Information

FEATURES

Internal cable passageway minimizes exposed cables
100% counterbalanced
16″ of vertical articulation
A keyboard tray or optional keyboard enclosure with work/writing surface
“No bounce” platform for typing
Tilting display mount with standard VESA bracket
Secure mechanical lock-in-place feature
Robust aluminum construction, powder-coated (see color options)
Remains level throughout the vertical and horizontal movement
Pivoting ergonomic display reduces glare and enhances visibility
Dual swivel ends allow for precise ergonomic repositioning
Folds to 10″ depth for convenient stowaway
Extends 33″ from mounting point, up to 52″ with optional extension

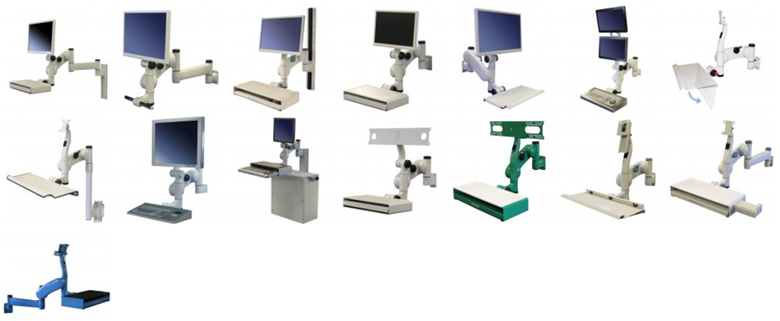

CUSTOM SOLUTIONS

Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 500,000 products on time for our customers.

	CleanMount	Other Arms
Warranty	Lifetime	Limited
Construction	Industrial Grade – most durable	Office grade – less durable
Installation	Ships fully assembled and pre-wired	Assembly, cable sourcing, and wiring required
Cleanability	Easiest – crevice-free joints	Difficult to clean
USB hub included	YES – simplifies replacing a failed keyboard or mouse	NO
Lock-in-place Safety Latch	YES	NO
Color Options	YES	NO

SPECIFICATIONS

Adjustability	Vertical Travel	16″
	Swivel at Display End	340°
	Swivel at Mounting End	180°
	Display Tilt	Forward tilt: 15° Backward tilt: 45°
Vertical Positioning	Counter balanced vertical adjustability
	Display and keyboard maintain level when repositioned
Materials of Construction	Body	356 cast aluminum alloy
	Keyboard Tray	5052 aluminum alloy
Bearings	Horizontal Axles	Precision ground ball bearings
	Vertical Axles	Acetal bushings
Cable Management	Removable cable cover, cables are factory preinstalled
Mounting Styles	Mounts on any wall or machine surface, or track mounted (track available in any length)
Finish	2-part catalyzed polyurethane antimicrobial powder coat and custom colors available
Approvals and Certifications	UL, CE, U.S. GSA Advantage, OSHPD

KEYBOARD OPTIONS

CleanMount is available with a variety of keyboard and mouse tray options. Custom configurations also available.

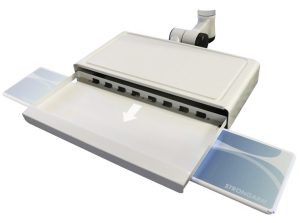

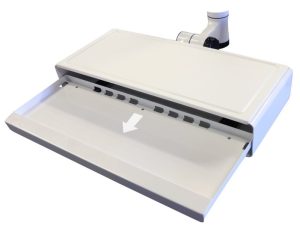

Standard Slideout Keyboard Module (18.5″ width)	Wide Slideout Keyboard Module (22.5″ width)	Standard Slideout Keyboard Module (with slideout mouse trays)

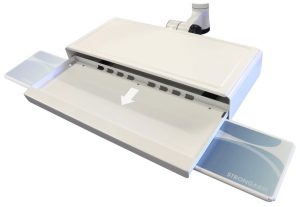

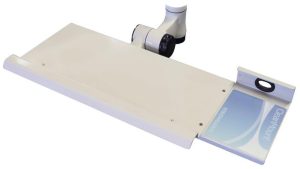

Wide Slideout Keyboard Module (with slideout mouse trays)	Open Keyboard & Mouse Tray

OPTIONAL DISPLAYS

Strongarm can configure your CleanMount arm with any of our display and touchscreen options. (See also: Touch Screen Technologies)

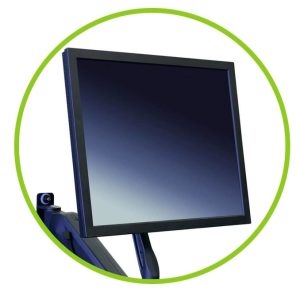

Desktop Display

Standard desktop-style displays are available in a variety of sizes from 15″ to 24″ and can optionally be configured from a selection of various touch screen technologies.

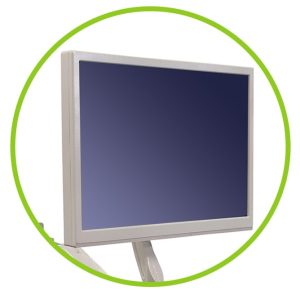

Powder Coated Display

Available in sizes from 19″ to 24″ and protected by powder coated steel, these displays are ideal for applications where rugged durability is required and can optionally be configured from a selection of various touch screen technologies.

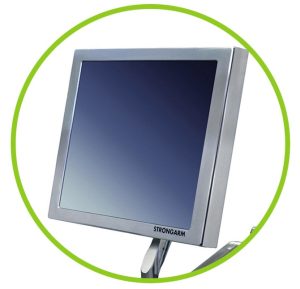

Stainless Steel Display

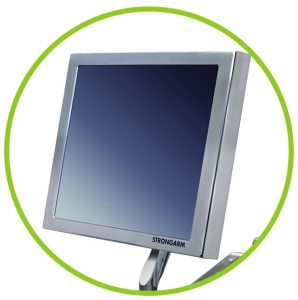

Sealed Stainless Steel Display

Similar to the stainless steel display, our sealed version is configured to allow the display cables to pass directly through the neck of the CleanMount, providing a completely sealed system.

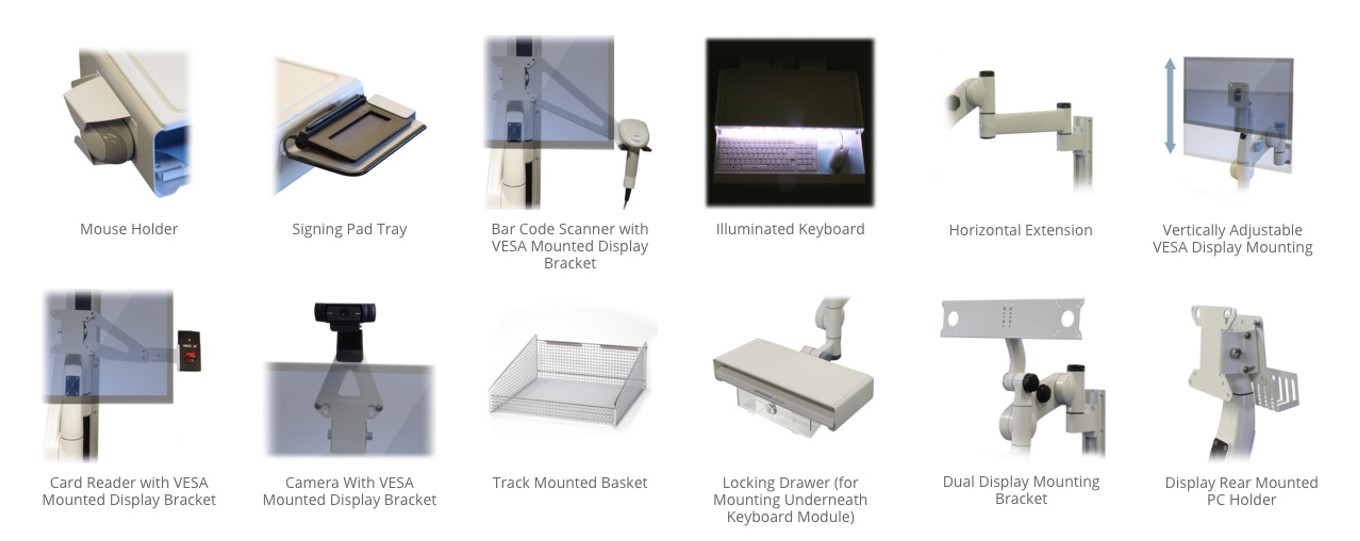

ACCESSORIES

Optional CleanMount accessories include: VESA dual display mount, VESA mounted hand-held barcode scanner bracket, VESA mounted RFID reader, VESA mounted rear-facing PC holder and more.
